Aerosol spectrometer with an aerosol sensor, highest particle size resolution, measuring range from 200 nm to 100 µm with light wave conductor technology
Benefits
Description
Application
Benefits
Measuring range of 0.2 to 100 µm (4 measuring ranges selectable in one device)
Up to four measuring ranges in only one device:
0,2 µm – 10 µm
0,3 µm – 17 µm
0,6 µm – 40 µm
2 µm – 100 µm (additionally for sensors 2300 and 2500)
Up to 128 size channels per measuring range
Concentration range of 1 particle/cm3 to 106 particles/cm3
Calibration curves for different refractive indices
Very high and reproducible counting efficiency rate starting at 0.2 µm (see Graph 2)
High temporal resolution down to 10 ms
Optical fibre technology
Measurement in potentially explosive environment
Long service life of the light source of 2000 h
Extensive PDControl and FTControl software
Simple operation
Calibration, cleaning and lamp replacement can all be performed independently by the customer
Low maintenance
Reliable function
Reduces your operating expenses
Description
The welas® digital 2000 is a flexible, powerful and economical light-scattering spectrometer system, which determines particle concentration and size precisely and reliably.
Unique are up to four measuring ranges in only one device:
0.2 µm – 10 µm
0.3 µm – 17 µm
0.6 µm – 40 µm
2 µm – 100 µm (additionally for sensors 2300 and 2500).
welas® digital 2000 is famous for up to 128 size channels per measuring range and a concentration range from < 1 particle/cm3 to 106 particles/cm3.
The device is characterized by its optical fibre technology, too. The welas® sensor is connected via a fiber optic cable with a length up to 30 m with the welas® digital control unit.
This leads to a minimization of particle losses in long sampling lines by simply installing the sensor directly at the sampling location.
Connection via fiber-optic cable allows the welas® 2000 and 2000 P series sensors to be easily connected to the control and evaluation unit and interchanged as required.
The welas ® sensors are equipped with different sized measurement volumes. This allows adaptation of the measuring device to the particle concentration present in the application, such that a high counting rate can be achieved with a short measuring time.
The aerosol sensors allow reliable measurement in the concentration range from < 1 particle/cm3 up to 106 particles/cm3.
The welas® digital is based on scattered-light analysis on a single particle. In the welas® digital, the special advantages of the well-known and internationally acclaimed welas® system are combined with new and fast digital individual signal processing and coincidence correction is enabled.
The high size classification accuracy and the high size resolution are guaranteed by the following special feature (see Graph 1):
White light and 90° light-scattering detection
Unambiguous calibration curve
Patented T-aperture
No border zone error
New digital individual signal processing
Coincidence detection and correction of the individual signal making it possible to measure in higher concentrations.
The welas® digital measurement technology
welas® digital offers a new, fast 20 MHz signal processing processor, which analyses the progression of each particle signal. This makes it possible to recognise coincidental events in light scattering measurement technology at the individual signal and correct them (according to Dr. Umhauer / Prof. Dr. Sachweh).
This way it is possible to increase the maximum concentration limit up to 106 particles/cm3 (welas® 2070 sensor).
Also in low concentrations < 1 particle/cm3 with the welas® 2500 sensor, this leads to a higher measuring accuracy.
High classification accuracy, high resolution capability and a high counting efficiency are the prerequisite for unambiguous particle measurement.

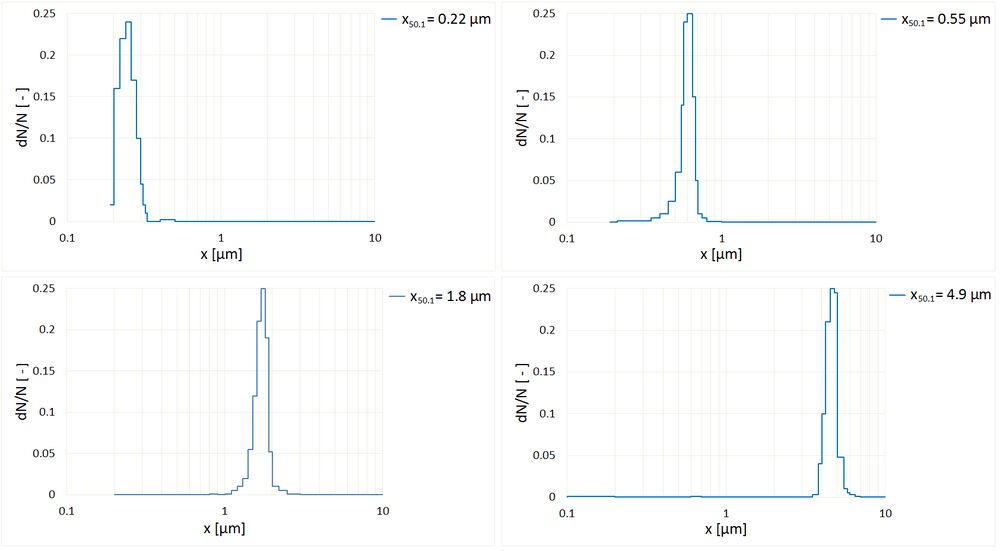

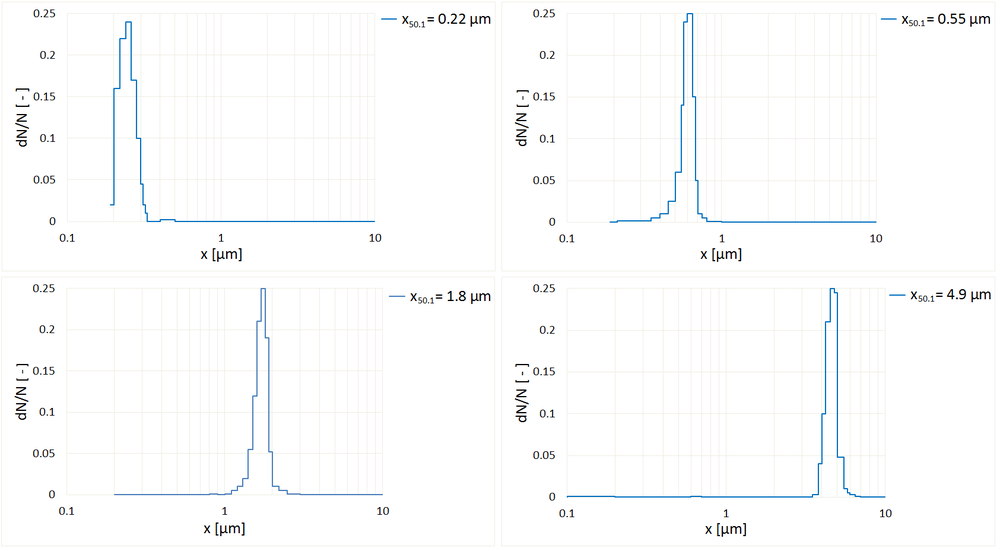

Fig. 1: Resolution capability and classification accuracy
The welas® digital is characterized by its very high counting efficiency starting from 0.2 µm!

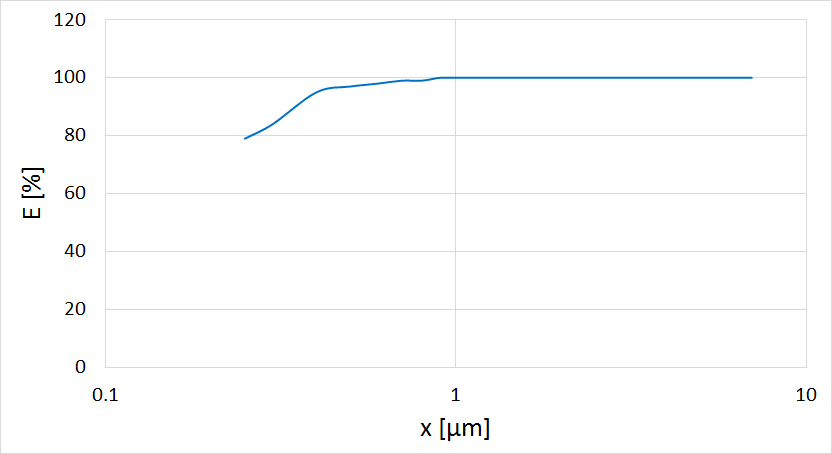

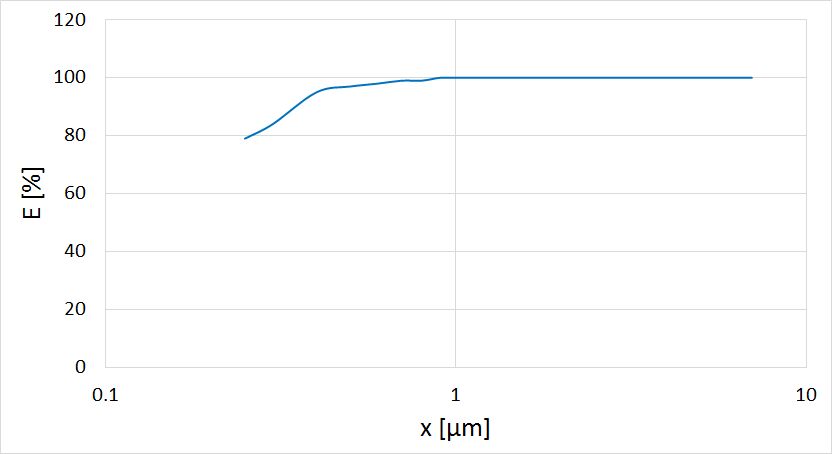

Fig. 2: Example with 2200 sensor, in relation to LAS-X II
The welas® PDControl digital software
The welas® digital is controlled via a laptop using the PDControl software. The software allows particle measurements and calibration of the measurement device. In addition, the measurements can be analyzed and compared in detail with a temporal resolution down to 10 ms.
Application
Determination of the separation efficiency of car interior
filters, engine air filters, room air filters, compressed air filters,
vacuum cleaner filters, cleanable filters, electrostatic precipitators,
oil separators, cooling lubricant separators, wet scrubbers, cyclones
and other separators
Isothermal and isobaric particle size and quantitative
determination, for instance in the automobile, chemical, pharmaceutical
and food industries
Analysis of fast, transient processes
Inspection of smoke detectors
Particle formation for cloud formation
Emission measurements
Immission measurements
Breathing function: Inhalation / Exhalation (Particle size and number)
To enquire about the welas® digital 2000 welas® digital system and the options available contact us now.
