PMFT 1000 F

PMFT 1000 F

PMFT SystemProtective Mask Test System

PMFT 1000 F as an all-rounder in the testing of almost all mask and filter types. Test of total penetration better than the standard, exact analysis of filter mask efficiency from 145 nm to 40 µm

Benefits
Description
Datasheet
Application

Benefits

  • Test rig working principle better than EN 143, ISO 16900-3, 42 CFR 84, EN 149 and EN 13274-7
  • Determination of photometric total penetration for the size range according to standard
  • Includes two aerosol generators for NaCl and for oil
  • Testing of fractional efficiency, e.g. efficiency in whole size range of 145 nm up to 40 µm
  • Exact analysis of filter and filter mask efficiency for SARS-CoV-2 (size approx. 120 nm up to 160 nm). Efficiency also displayed at 145 nm
  • Future proof: Works with any kind of aerosol without adjustments
  • Further measurement of differential pressure, e.g. as well within different face velocities to simulate test of breathing resistance
  • Face velocity adjustable between 1.5 – 70 cm/s
  • Product for fast quality assurance and continuous optimization in R&D (display of size distribution)
  • Attractive two years maintenance package for availability of test rig
  • Can be operated with standard filter threads according to EN 148-1
  • Measurement of filter efficiencies up to 99.9995 %

Description

The PMFT 1000 M tests respirators better than the standard with additional accurate analysis of filter mask efficiency for SARS-CoV-2 (size approximately 120 nm to 160 nm). Indication of efficiency in the virus size range from 145 nm.

The PMFT 1000 M is equipped with aerosol generators for measuring penetration with oil and salt. Measurement procedures for quick quality control (short test) or for testing according to standard (exposure test) are supplied.

Operation and automatic printout of the measurement results are therefore easy even for inexperienced users.

The measurement of total penetration and penetration via particle size is carried out with the high-precision aerosol photometer Promo LED 2300.

The size distribution of the test aerosol according to the standard is as follows:

EN 149:

Oil: Media diameter 290 nm | Geom. standard deviation 1,85
Salt: Media diameter 70 nm | Geom. standard deviation 2.5

42 CFR 84 / GB 2626:

Oil: Media diameter 200 nm | Geom. standard deviation 1.6
Salt: Media diameter 55 nm | Geom. standard deviation 1.86


Based on the measurement of the particle penetration via the particle size, the PMFT can also be used to consider the tolerances in the particle size distribution according to EN 13174-7 as min./max. penetration value. In addition, comparative values to other manufacturers are possible (option).

Comparison of EN 149 penetrations.PNG

The comparison with other standards (42CFR84/NIOSH) is also easy with the 42CFR84 upgrade KIT.

Comparison Niosh.PNG

Overview of standards for face mask penetration testing

EN 149
EN 13274-7
EN 13274-7
GB 2626
GB 2626
42 CFR 84
42 CFR 84
Aerosol
see EN 13274-7
NaCl
PaO
NaCl
PaO/DOP
NaCl
DOP
Mean diameter
see EN 13274-7
0.06 – 0.1 µm
0.29 – 0.45 µm
0.055 – 0.095 µm
0.165 – 0.205 µm
0.055 – 0.095 µm
0.165 – 0.205 µm
Standard deviation
see EN 13274-7
2 – 3
1.6 – 2.2
< 1.86 (by additional software module)
< 1.6 (by additional software module)
< 1.86 (by additional software module)
< 1.6 (by additional software module)
Concentration
see EN 13274-7
4 –12 mg/m³
15 – 25 mg/m³
< 200 mg/m³
(50 mg/m³) < 200 mg/m³
< 200 mg/m³
< 200 mg/m³
Discharge
-
-
-
required
required
required
required
Air flow
see EN 13274-7
95 l/min
95 l/min
85 ± 4 l/min
85 ± 4 l/min
85 ± 4 l/min
85 ± 4.25 l/min
Temperature
see EN 13274-7
22  ± 3 °C
-
25 ± 5 °C
25 ± 5 °C
25 ± 5 °C
25 ± 5 °C
Rel. humidity
see EN 13274-7
< 40 %
-

20 – 40 %

(by compressed air)

-

20 – 40 %

(by compressed air)

20 – 40 %

(by compressed air)

Measurement device
see EN 13274-7

Sodium flame photometer

Light scattering photometer

particle detector

particle detector

Light scattering photometer

Light scattering photometer

Measuring time
see EN 13274-7
30 s
30 s

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

Pause time
see EN 13274-7
180 s
180 s

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

Exposition
120 mg
120 mg
120 mg

200 ± 5 mg

200 ± 5 mg

200 ± 5 mg

200 ± 5 mg

PMFT remarks

O.K.

O.K.

O.K.

O.K. with upgrade KIT

O.K. with upgrade KIT

O.K. with upgrade KIT

O.K. with upgrade KIT

Application

  • Test of respiratory masks with standard filter threads according to EN 148-1
  • Test of total penetration for respiratory masks
  • Exact analysis of filter mask efficiency for e.g. Coronavirus
  • Filter testing for HEPA quality

To enquire about the PMFT 1000 F Protective Mask Test System and the options available contact us now.

The PMFT 1000 F tests respiratory protection particle filters better than the standards EN 143, ISO 16900-3 and NIOSH 42 CFR 84 with additional accurate analysis of filter mask efficiency for SARS-CoV-2 (size approximately 120 nm to 160 nm). Both total photometric penetration and fractional efficiency are tested e.g. the efficiency in the whole size range respectively the particle size-dependent penetration.

The PMFT 1000 F is equipped with aerosol generators for measuring penetration with oil and salt. Measurement procedures for quick quality control (short test) or for testing according to standard (exposure test) are supplied.

Operation and automatic printout of the measurement results are therefore easy even for inexperienced users.

The measurement of total penetration and penetration via particle size is carried out with the high-precision aerosol photometer Promo LED 2300. An automatic switch allows efficiency measurements without dilution up to 99.9995 %.

The size distribution of the test aerosol according to the standard is as follows:

EN 143

Oil: Media diameter ca. 160 nm | Geom. standard deviation < 2

Salt: Media diameter ca. 60 nm | Geom. standard deviation < 1.9

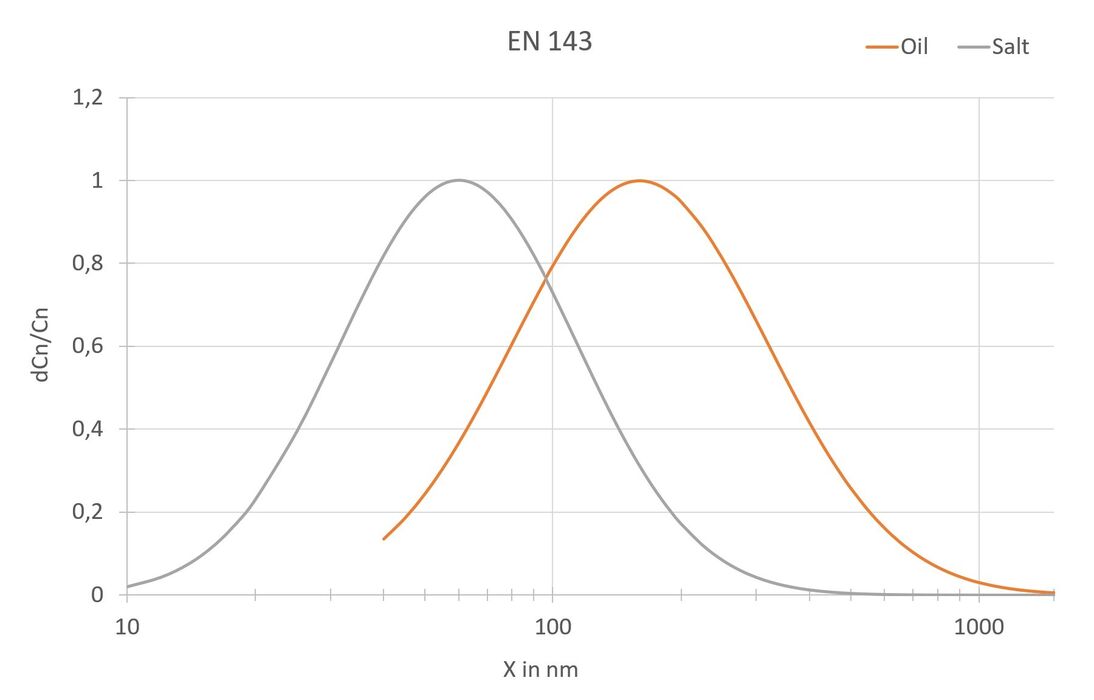

EN 143 Particle Distribution.jpg

ISO 16900-3

Oil: Media diameter 190 nm | Geom. standard deviation 1.6
Salt: Media diameter 80 nm | Geom. standard deviation 1.6

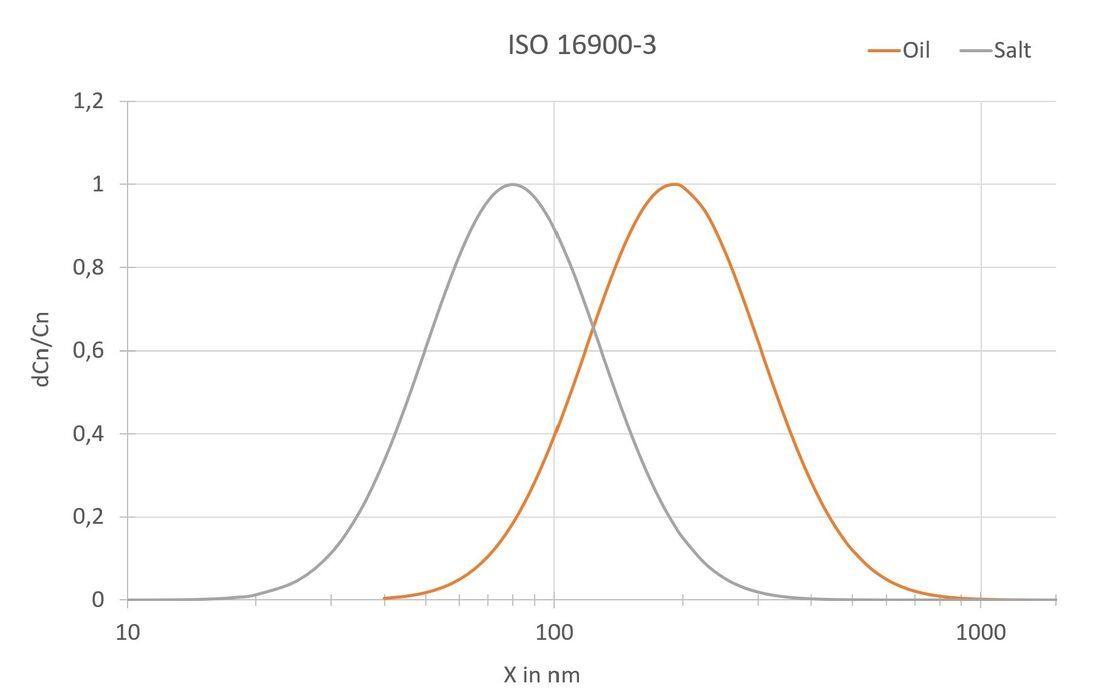

ISO 16900-3 Particle Distribution.jpg

42 CFR 84

Oil: Media diameter 200 nm | Geom. standard deviation 1.6
Salt: Media diameter 55 nm | Geom. standard deviation 1.86


Based on the measurement of the particle penetration via the particle size, the PMFT can also be used to consider the tolerances in the particle size distribution according to EN 13274-7 as min. / max. penetration value.
