FTControl

The FTControl software is used for the reliable and economical performance of filter tests and fractional separation efficiency measurements with the welas^® digital optical aerosol spectrometer.

The FTControl software provides the user with special advantages, including individually programmable sequences for fractional separation efficiency measurement. A simple menu navigation system guides the user through the measurement program and the results are automatically calculated and displayed.

Individual test rig components, such as volume flow controls, aerosol generators, and a measuring point switch, can be controlled using the integrated test rig control system, resulting in fully automated filter tests.

Palas^® software solutions in the fields of particle measurement technology, filter testing, and test rig control are based on our many years of experience and have been continuously optimized and further developed in close collaboration with our international customers based on their requirements.

As a result, Palas^® software is especially practical and provides many advantages in daily applications.

We will be happy to send you our demo software.

Palas^® also offers other software, including:

• PDControl: Software for particle size and concentration analysis with welas^® digital or Promo^®
• In addition, Palas^® offers custom software solutions for the automation and control of customer-specific test rigs with the inclusion of external measurement systems.

Quality to the last detail:

• Control of entire filter test rigs

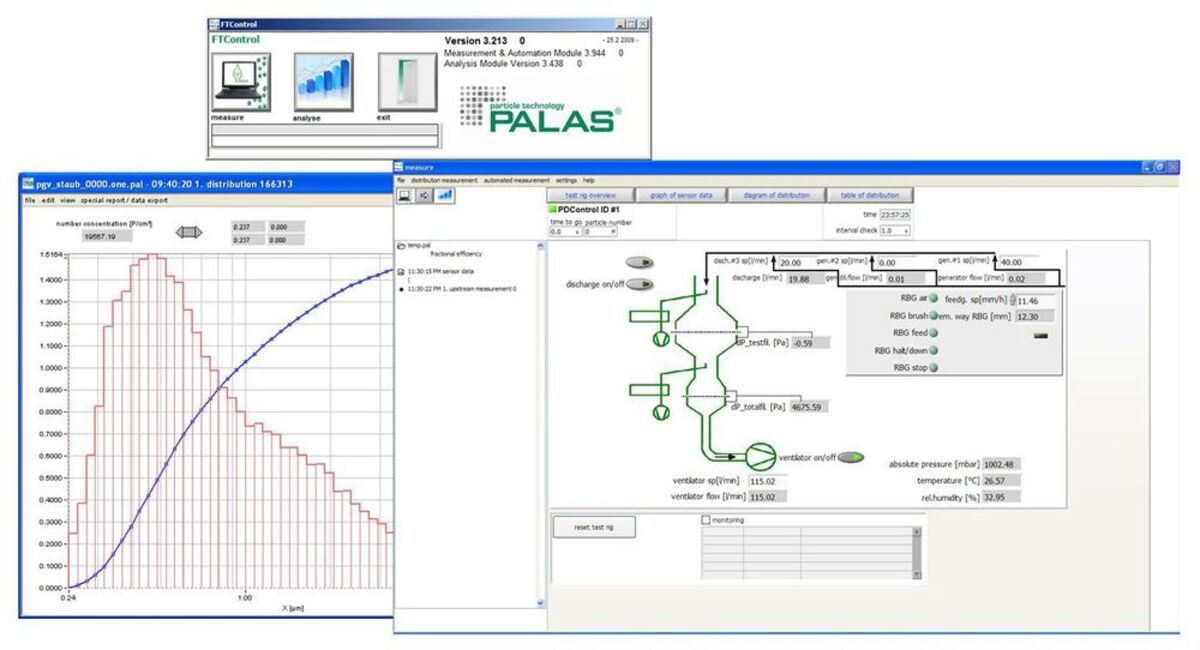

Example: MFP 1000 automated filter test rig:
Automated components:
RBG 1000 aerosol generator , Promo^® 1000, volume flow control
Integrated sensors: Differential pressure, temperature, relative humidity

• Individually configurable sequence programs

Examples:

• Fractional separation efficiency measurement with
• Automatic control of crude gas/pure gas
• Selection of measurement time in crude gas/pure gas
• Selection of number of repeat measurements
• Service life measurement, filter behavior during dusting
• Such as fractional separation efficiency measurement
• Discontinuation criterion for measurement of discharge pressure loss or time
• Pressure loss measurement
• Measurement of undusted filter at various specified volume flows

External sensor data are recorded and stored in parallel FTControl offers numerous other options, test conditions, and test time sequences to define automated measurements.

• Display and comparison of fractional separation efficiency

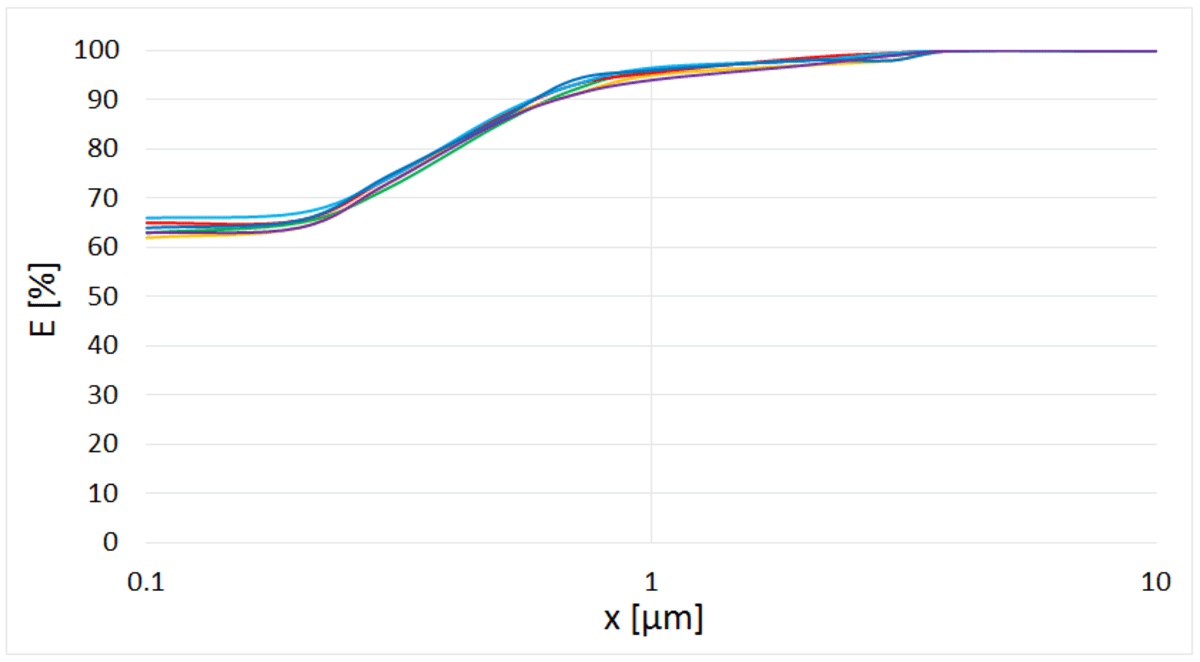

Example: Comparison of 8 fractional separation efficiencies for quality assurance

• Display and comparison of pressure loss curves and retention during loading of filters over time

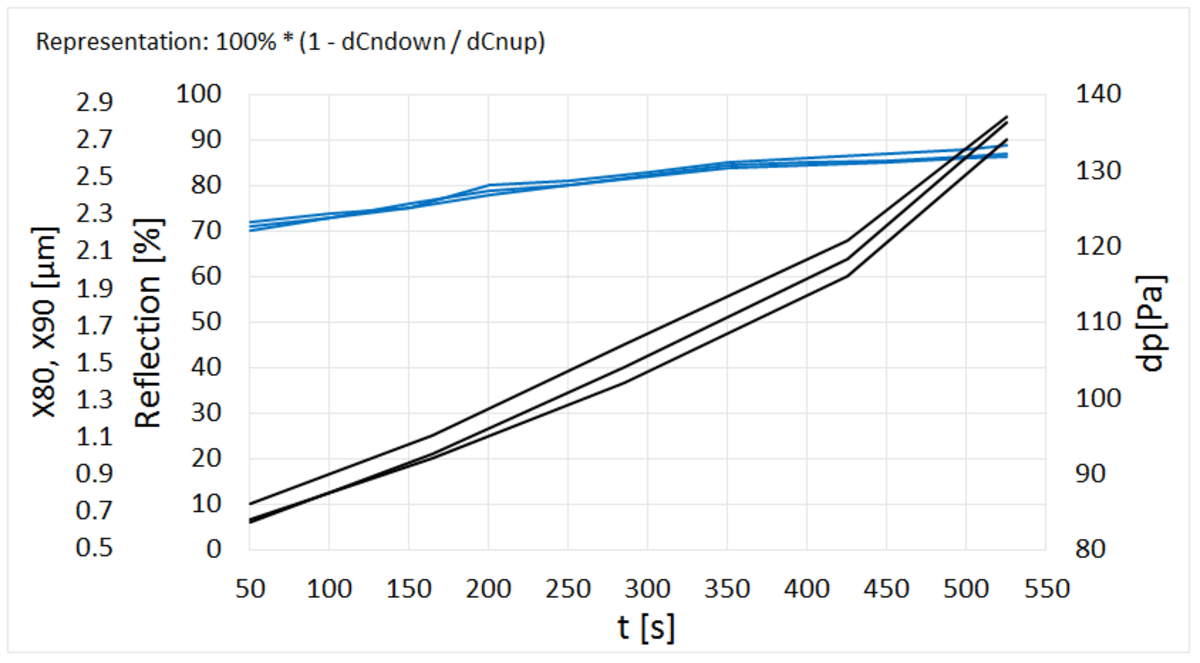

Example: Comparison of the pressure loss curve and overall retention of 3 filter media during dusting, as measured on the MFP 3000

• Display and comparison of particle size distributions e.g. number, volume, mass distribution

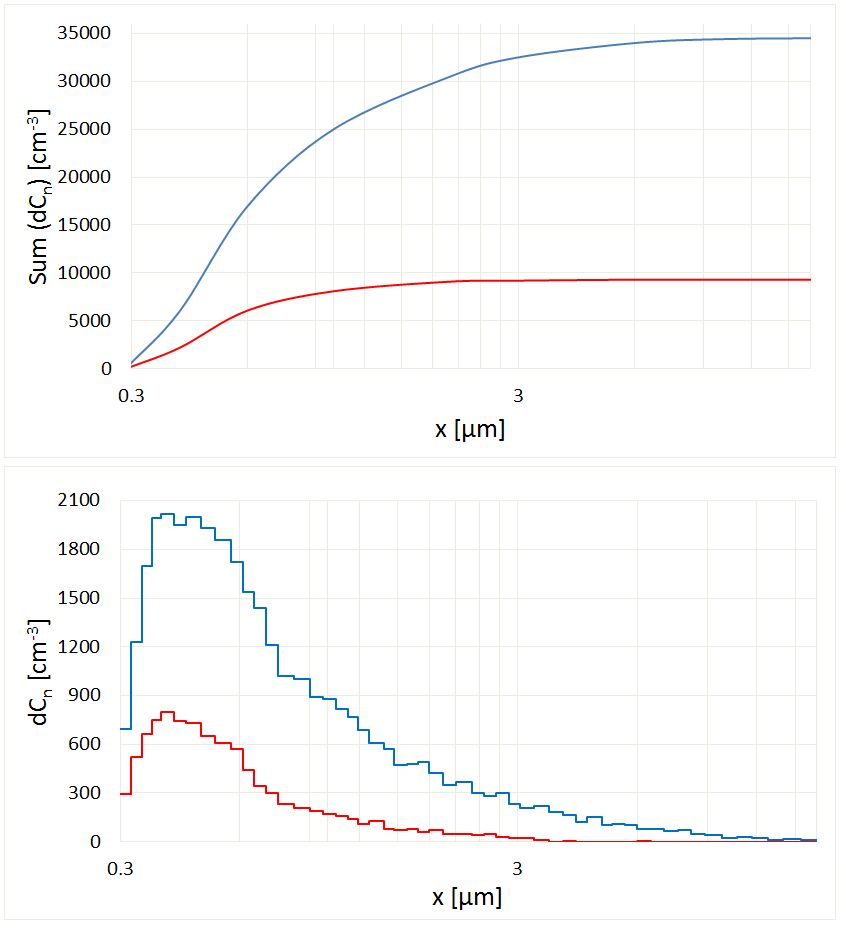

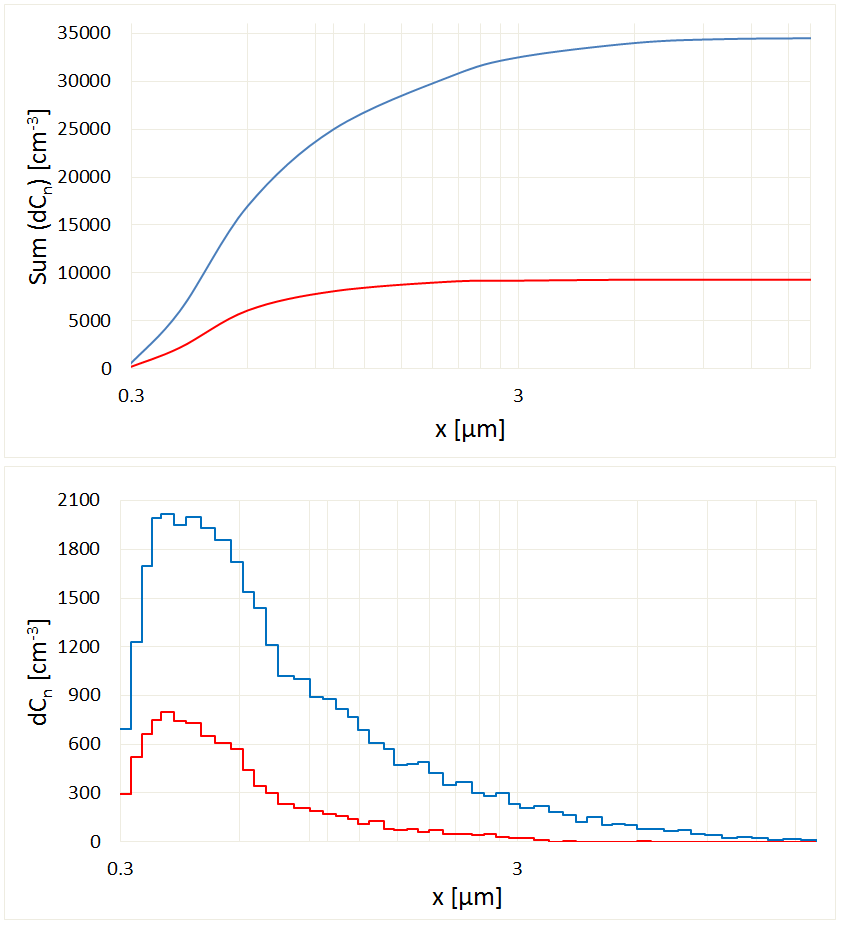

Example: Comparison of the particle size distribution for crude (blue) and pure (red) gas measurement during filter testing

• Analysis in table form, including the test conditions

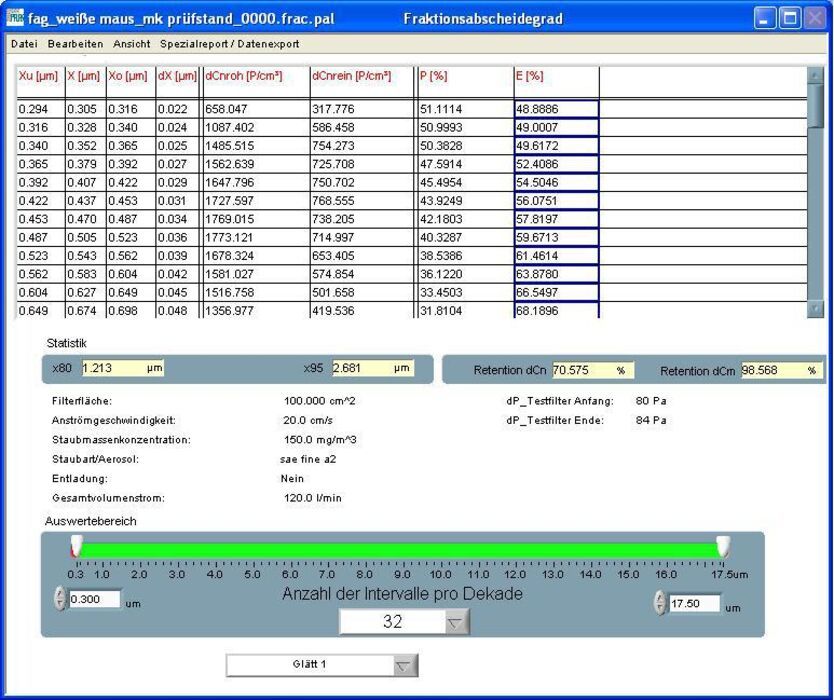

Example: Fractional separation efficiency measurement on the MFP 2000

Determination of separation efficiency of

• Car interiors filters
• Engine air filters
• Ambient air filters
• Compressed air filters
• HEPA filters
• Vacuum cleaner filters
• Cleanable filters
• Electrofilters
• Oil separators
• Cooling lubricant separators
• Wet scrubbers
• Cyclones and other separators
