Aerosol Generators for Solid Particles

The term "aerosol" is used to describe a mixture of air and all possible particles that could be present in the air, such as droplets, dust, pollen etc., in the size range from around 1 nm to 100 µm. In order to allow clear comparisons of the functions of e.g. filters and particle measurement devices, defined test aerosols made of solids are required. All Palas® aerosol generators meet the stringent requirements of VDI guideline 3491. Depending on the model of aerosol generator, the test particles can be generated from solutions (e.g. NaCl, KCl), suspensions (e.g. biological aerosols), powders and dusts (e.g. pollen, A1 to A4 dusts), from monolithic solids (e.g. chalk) or as a result of condensation and combustion processes. The test aerosols or test particles are manufactured with optimized dosing consistency and outstanding reproducibility. The test aerosols can be generated with mass flows – depending on the model – ranging from a few µg/h to more than 6 kg/h. The particle size distributions of the test aerosols range from around 1 nm to 100 µm and can be manufactured to be monodisperse or polydisperse depending on the model and aerosol substance.

Menu Alignment

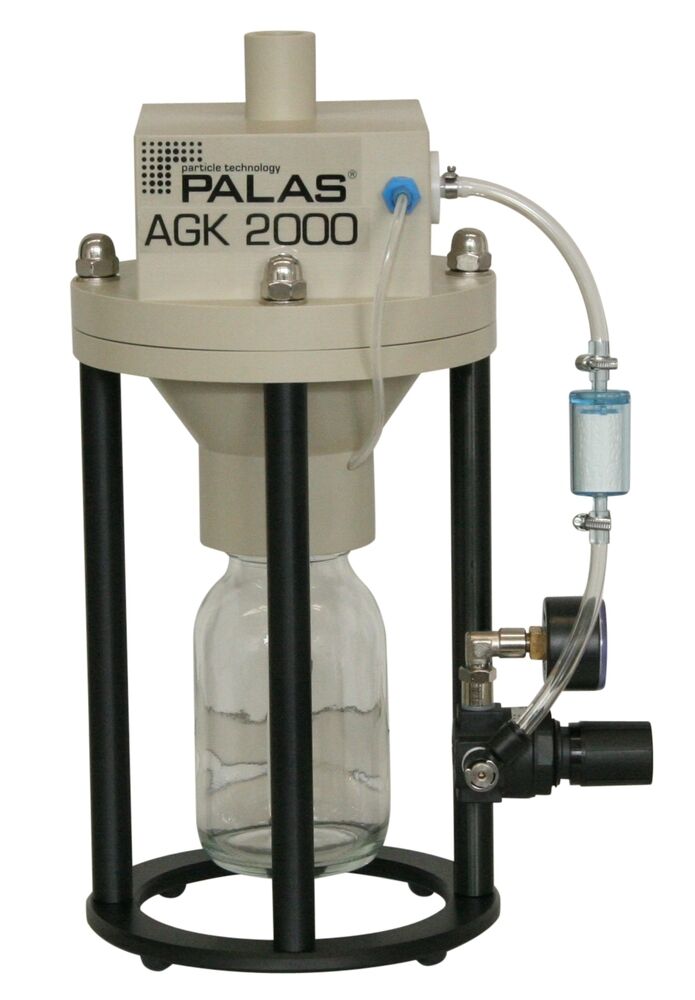

AGK system

Generation of solid particles out of suspensions, solutions and biological agents

Menu Color

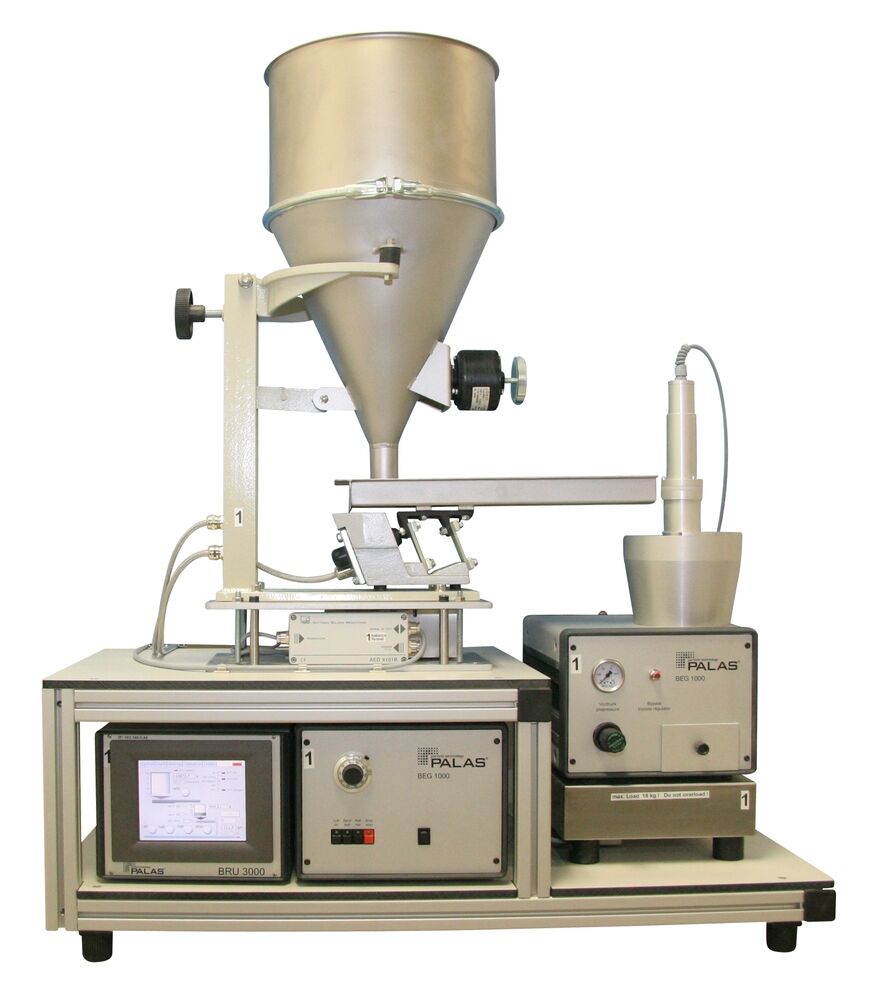

BEG system

Generation of test aerosols from powders, pollen, and biological agents, mass flow approx. 8 g/h – 7,3 kg/h

Main Menu

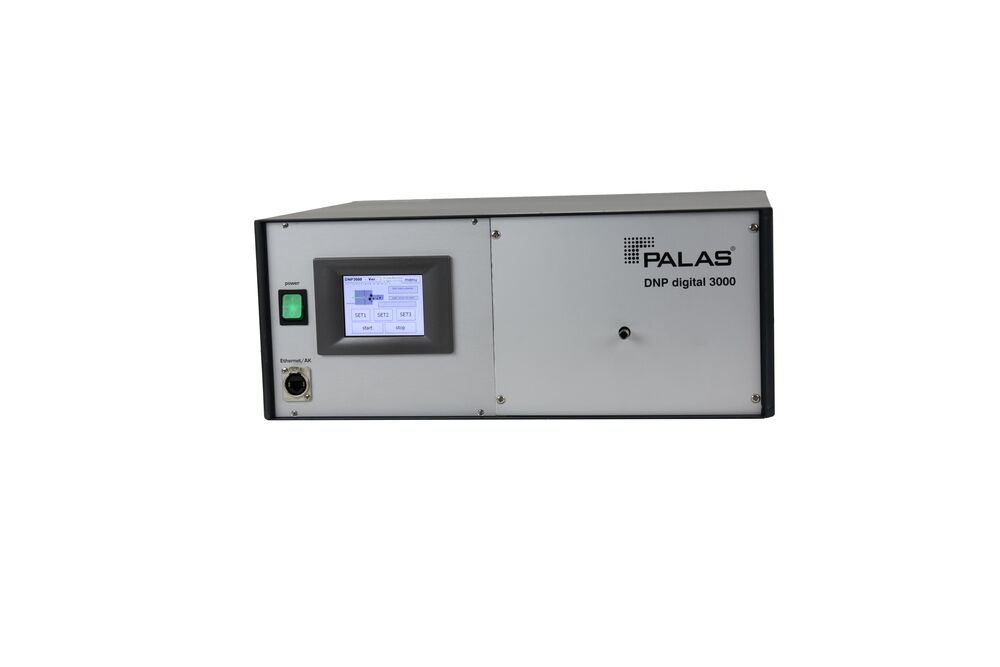

DNP digital system

Generation of nano-scale test aerosols from graphite, silver (Ag), gold (Au), copper (Cu), etc. through condensation; Carrier gas: Nitrogen or Argon

Parent Menu Item

DSP system

Product DISCONTINUED 01 September 2019

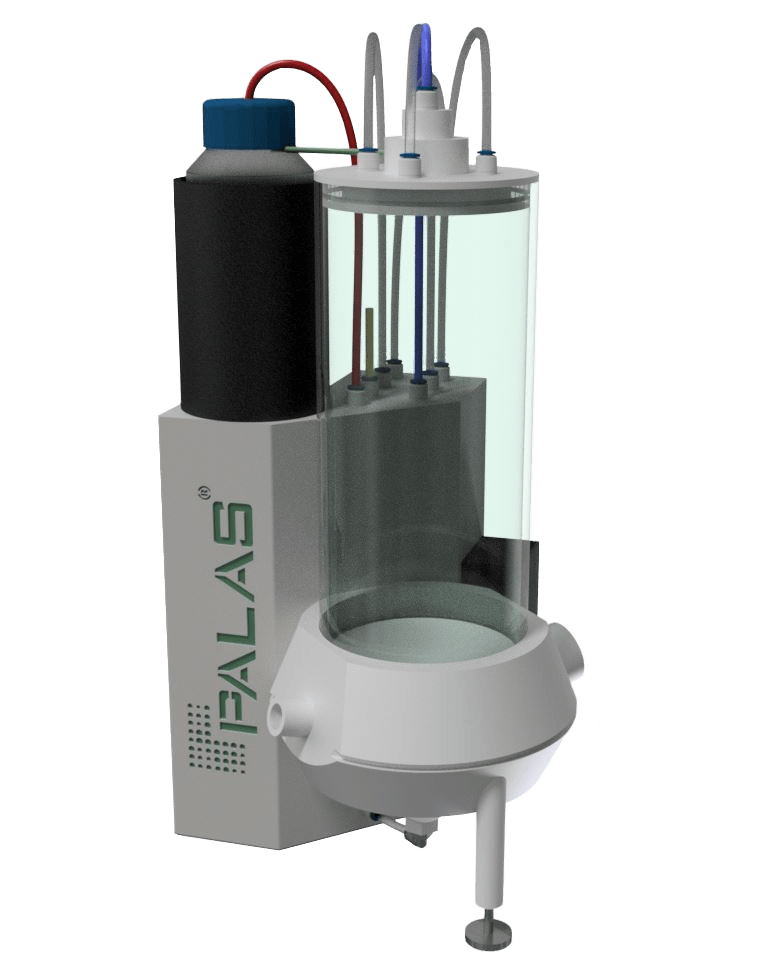

LSPG System

Aerosol generator for KCl and other salt particles up to 10 μm based on ISO 16890

Parent Link

NDF100-3FI System

Generation of test- and test aerosols from all dispersible, also strongly agglomerating powders of all kinds, with mass flows of approx. 20 g/h - 8,000 g/h

Parent Menu Items

NDF100-BD System

Generation of test aerosols from all dispersible, also strongly agglomerating powders of all kinds, with mass flows of approx. 20 g/h - approx. 600 g/h (dust type dependent)

Main Navigation

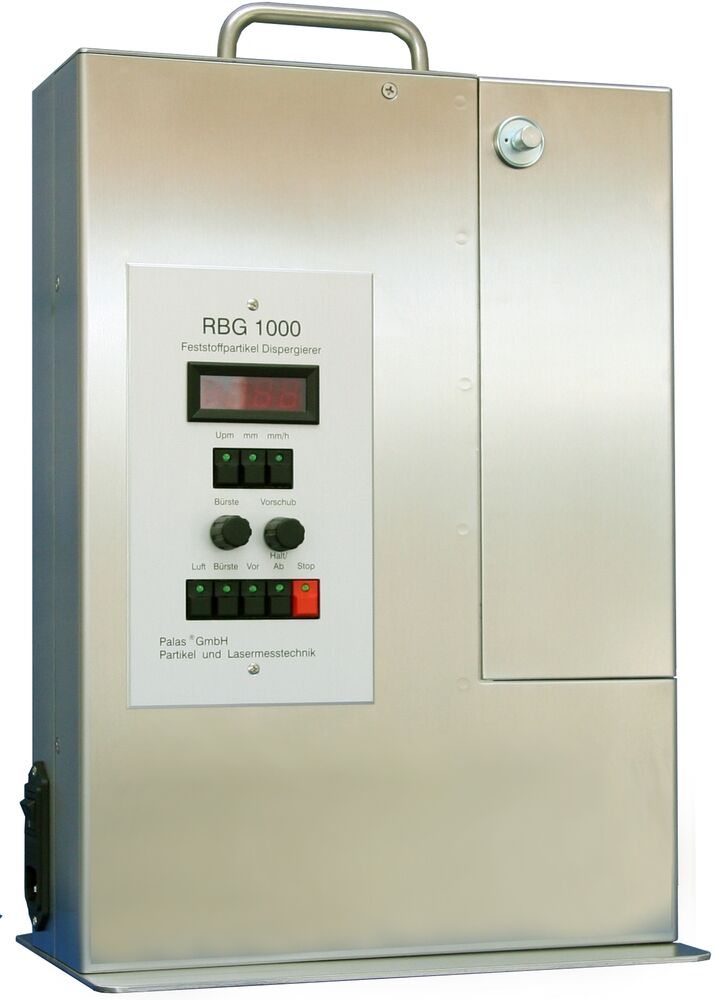

RBG system

Generation of test aerosols from powders, pollen, and monolithic solid materials with mass flows of approx. 10 mg/h – 560 g/h
